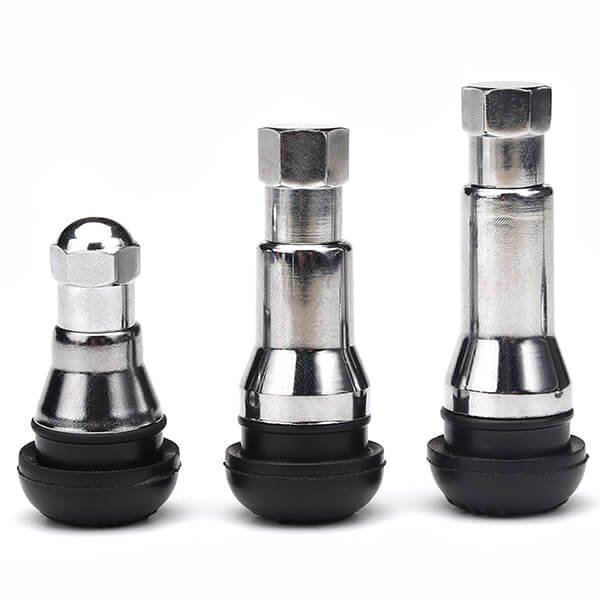

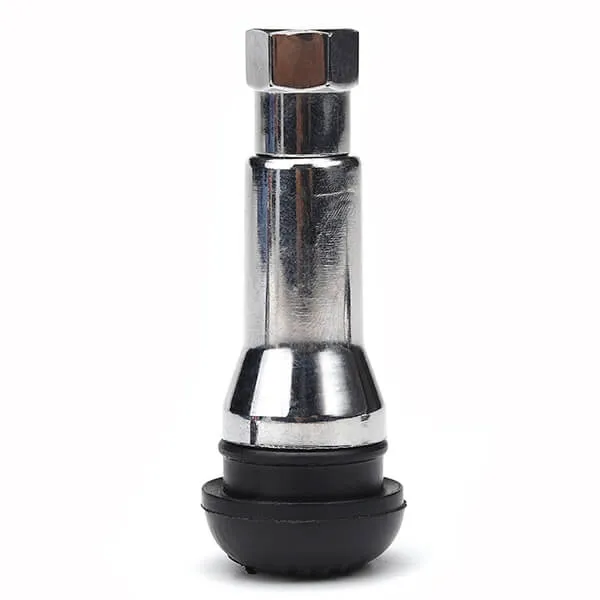

Chrome Sleeve Snap-in Tire valves

Chrome Sleeve Snap-in Tire valves

  • Item:  TR413C, TR414C,  TR418C
  • Stem material: Brass
  • Rubber: Nature, EPDM
  • Sleeve:Chrome brass
  • Rim Hole:Φ11.5/.453″
  • Temperature range: -40°C to +100°C
  • Cold inflation pressure maximum: Up to 65Psi/4.5Bar

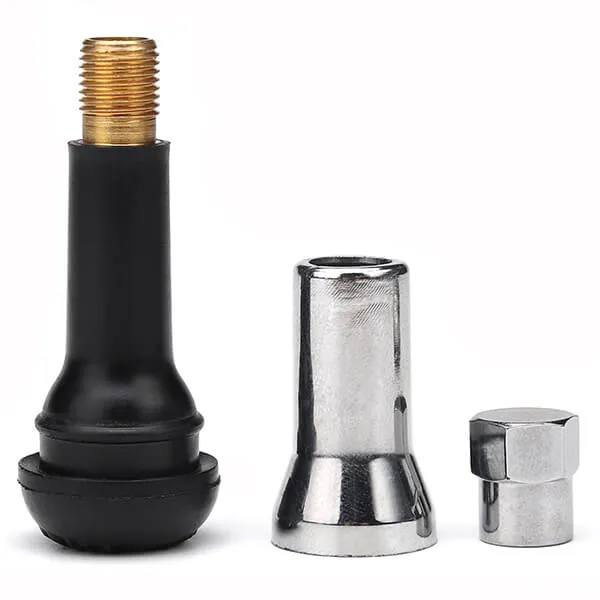

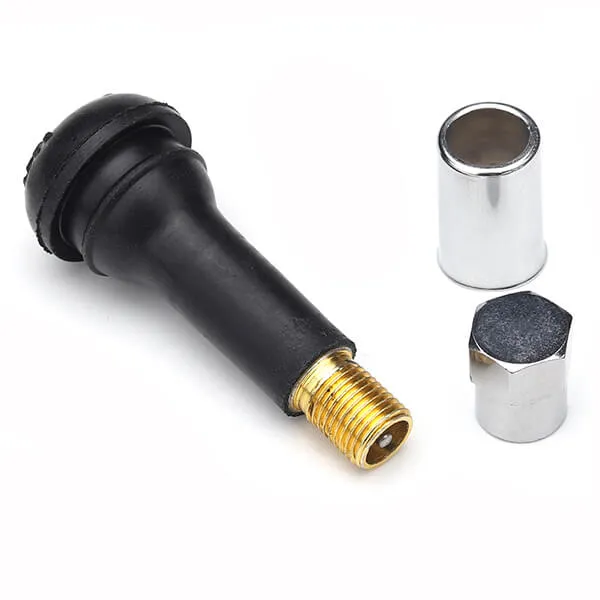

  • Components:rubber cover on brass stem,core,cap & sleeve

Description

TR NO.ETRTOSleeveABCRim HoleEff.length
(mm)
CoreCap
TR413CV2.03.1Half423215Φ11.5/.453"309002#CA5
TR414CV2.03.2Half483815Φ11.5/.453"389002#CA5
TR418CV2.03.4Half625115Φ11.5/.453"499002#CA5
TR412ACV2.03.6Full332215Φ11.5/.453"229002#CT
TR413ACV2.03.1Full423215Φ11.5/.453"309002#CT
TR414ACV2.03.2Full483815Φ11.5/.453"389002#CT

Specification

*All valves are 100% verified for air-tightness.
Have fulfilled the requirements for ISO/TS16949 certification by TUV management services.
