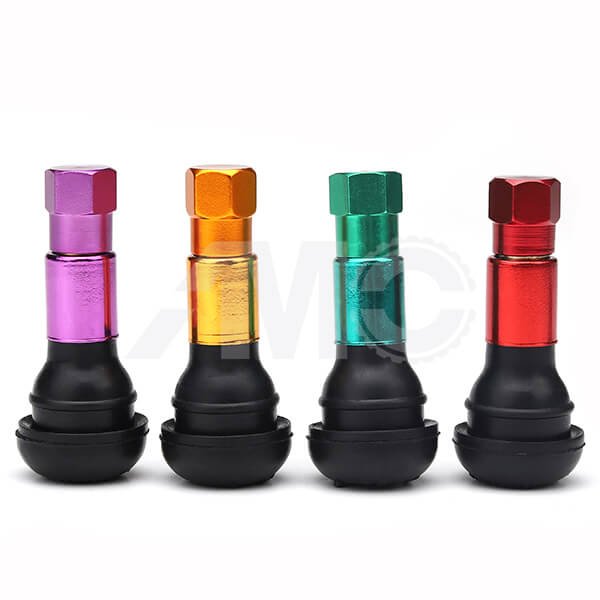

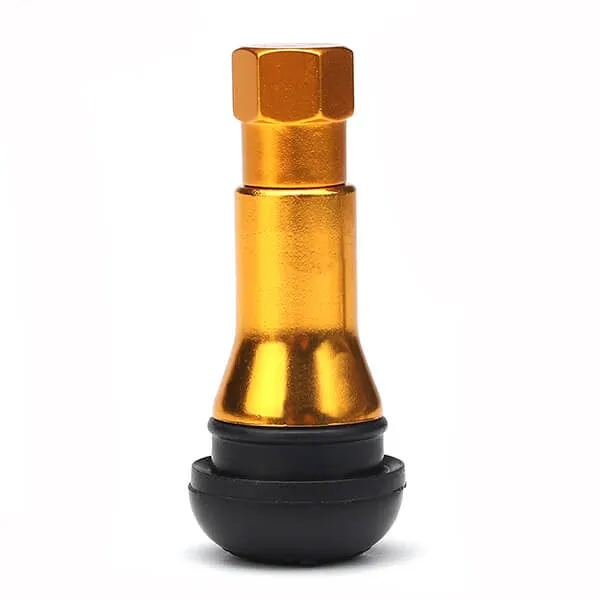

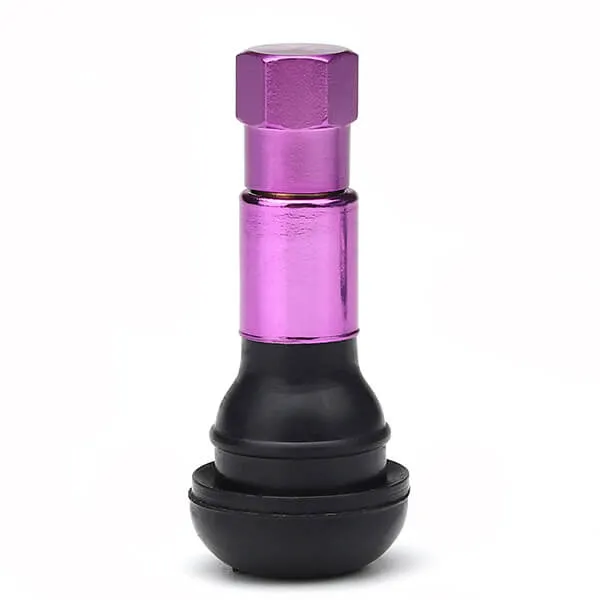

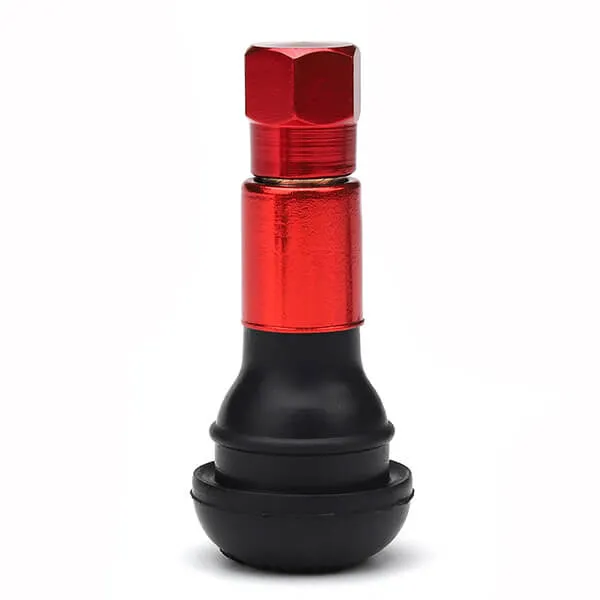

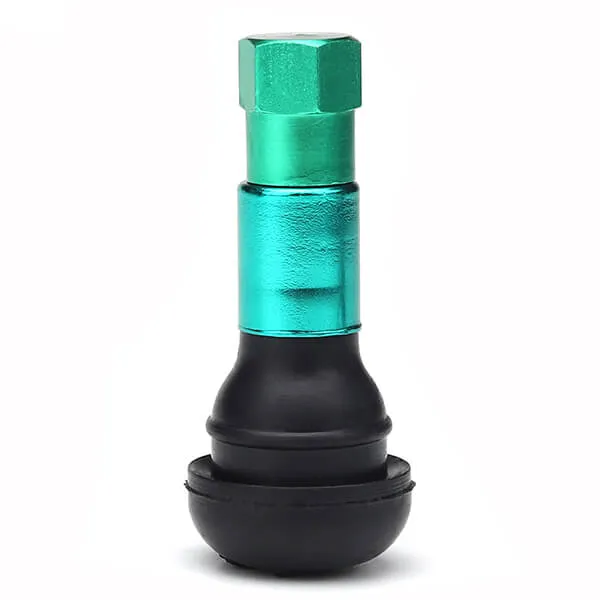

Aluminium Color Sleeve Rubber Valve Stem

Aluminium Color Sleeve Rubber Valve Stem

Category Tags , , , ,
  • Item: TR413C-B, TR413AC-B, TR414C-B, TR414AC-B …
  • Stem material: Brass
  • Rubber: Nature, EPDM
  • Sleeve：Aluminium Half & Full Sleeve
  • Color：Blue，Green，Purple，Red，Yellow
  • Rim Hole:Φ11.5/.453″
  • Temperature range: -40°C to +100°C
  • Cold inflation pressure maximum: Up to 65Psi/4.5Bar

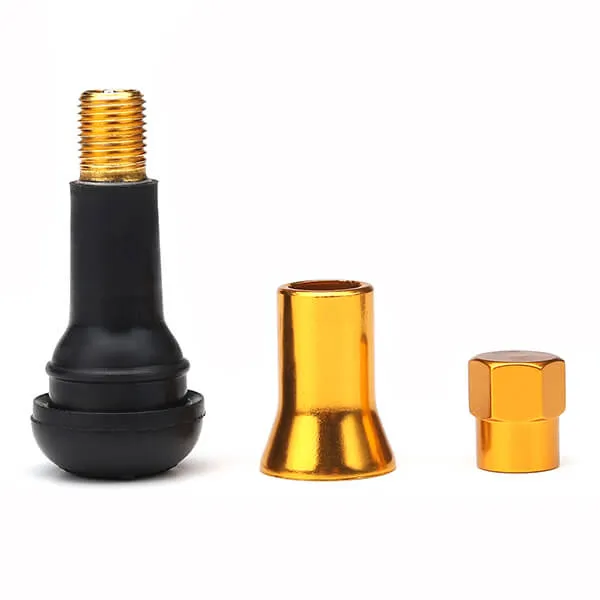

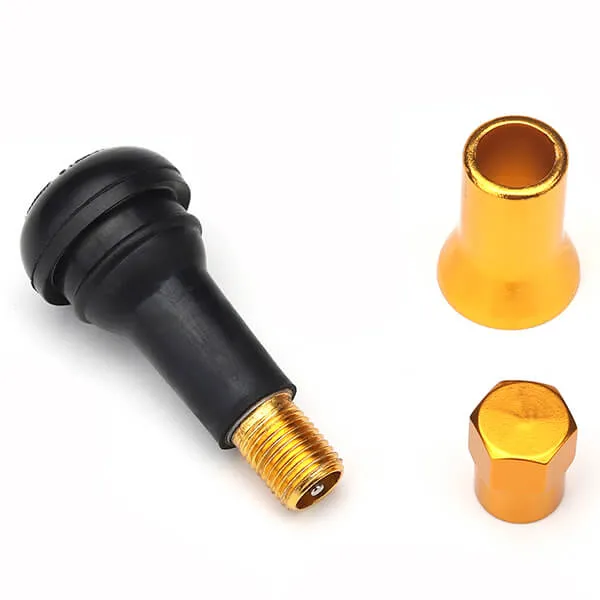

  • Components:rubber cover on brass stem,core,cap & sleeve
Request A Quote

Description

TR NO.ETRTOColorSleeveABCRim HoleEff.length
(mm)		CoreCap
TR413C-BV2.03.1BlueHalf324215Φ11.5/.453"309002#AVC-7
TR413C-GV2.03.1GreenHalf324215Φ11.5/.453"309002#AVC-7
TR413C-PV2.03.1PurpleHalf324215Φ11.5/.453"309002#AVC-7
TR413C-RV2.03.1RedHalf324215Φ11.5/.453"309002#AVC-7
TR413C-YV2.03.1YellowHalf324215Φ11.5/.453"309002#AVC-7
TR414C-BV2.03.2BlueHalf384815Φ11.5/.453"389002#AVC-7
TR414C-GV2.03.2GreenHalf384815Φ11.5/.453"389002#AVC-7
TR414C-PV2.03.2PurpleHalf384815Φ11.5/.453"389002#AVC-7
TR414C-RV2.03.2RedHalf384815Φ11.5/.453"389002#AVC-7
TR414C-YV2.03.2YellowHalf384815Φ11.5/.453"389002#AVC-7
TR413AC-BV2.03.1BlueFull324215Φ11.5/.453"309002#AVC-7
TR413AC-GV2.03.1GreenFull324215Φ11.5/.453"309002#AVC-7
TR413AC-PV2.03.1PurpleFull324215Φ11.5/.453"309002#AVC-7
TR413AC-RV2.03.1RedFull324215Φ11.5/.453"309002#AVC-7
TR413AC-YV2.03.1YellowFull324215Φ11.5/.453"309002#AVC-7
TR414AC-BV2.03.2BlueFull384815Φ11.5/.453"389002#AVC-7
TR414AC-GV2.03.2GreenFull384815Φ11.5/.453"389002#AVC-7
TR414AC-PV2.03.2PurpleFull384815Φ11.5/.453"389002#AVC-7
TR414AC-RV2.03.2RedFull384815Φ11.5/.453"389002#AVC-7
TR414AC-YV2.03.2YellowFull384815Φ11.5/.453"389002#AVC-7

Specification

*All valves are 100% verified for air-tightness.
Have fulfilled the requirements for ISO/TS16949 certification by TUV management services.
